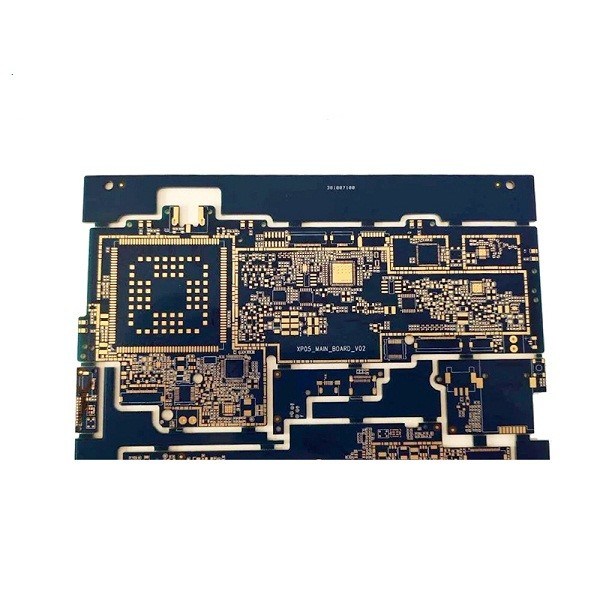

TG150-170 Flexible Multilayer PCB with Impedance Control and White Silk Screen

TG150-170 Flexible Multilayer PCB with Impedance Control and White Silk Screen

TG150-170 Flexible Multilayer PCB with Impedance Control and White Silk Screen

Brand Name:	Hengxunda
Model Number:	DSH50030A1
MOQ:	1 pz
Price:	USD 0.1-5/pcs
Delivery Time:	7-10 giorni
Payment Terms:	T/T, Western Union

Detail Information

Descrizione del prodotto

Detail Information

Luogo di origine:

Cina

Certificazione:

UL, ROHS,SGS,ISO9001

Metodo di spedizione:

ARIA/MARE/Espresso

Conteggio degli strati:

2-20

Finitura superficiale:

HASL/ENIG/OSP/Dito d'argento/oro ad immersione

min. Spazio linea:

3mil

Spessore del rame:

1/2oz-6oz

Materiale:

FR-4, TG150-170/ Alluminio/ Flessibile

Controllo dell'impedenza:

Sì/No

Colore dello schermo di seta:

Bianco/Nero/Giallo

Imballaggi particolari:

25 kg/cartone, imballaggio sottovuoto

Capacità di alimentazione:

100000 al mese

Descrizione del prodotto

Product Description: Multilayer PCB is a type of printed wiring circuit board with multi-layer structure. It is usually made of FR-4 material with a Thermal Grade (TG) of 150-170, and is also available in aluminum and flexible material. The board thickness varies from 0.2mm to 3.2mm, and the minimum hole size is 0.2mm. The minimum line space is 3mil. The multilayer PCB can be shipped via air, sea or express. This type of printed wiring circuit board has been widely used in
