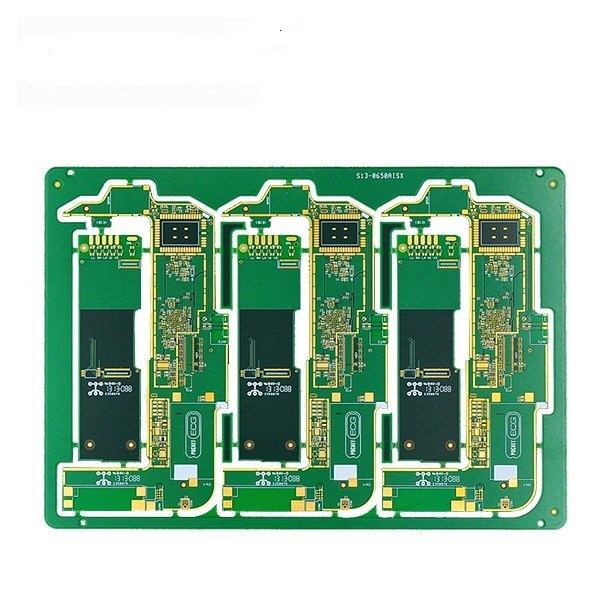

Impedance Control Multi-Layered Printed Circuit Board Ideal for Applications

Impedance Control Multi-Layered Printed Circuit Board Ideal for Applications

Impedance Control Multi-Layered Printed Circuit Board Ideal for Applications

Brand Name:	Hengxunda
Model Number:	PCB della scheda principale 01
MOQ:	1 pz
Price:	USD 0.1-5/pcs
Delivery Time:	7-10 giorni
Payment Terms:	T/T,Paypal,L/C

Detail Information

Descrizione del prodotto

Detail Information

Luogo di origine:

Cina

Certificazione:

UL, SGS, ISO9001,ROHS

Materiale:

FR4

Conteggio degli strati:

2-4

Controllo dell'impedenza:

SÌ

Larghezza/spazio minimi della traccia:

6/6mil

Spessore del pannello:

1,6 mm

Spessore del rame:

1/2OZ

Min Solder Mask Dam:

4mil

Dimensione minima del foro:

0,2 mm

Imballaggi particolari:

25 kg/cartone, imballaggio sottovuoto

Capacità di alimentazione:

100000 pezzi al mese

Descrizione del prodotto

Product Description: Multilayer PCBs, also known as multi-faceted, multi-sided, and multi-level printed circuit boards, are a complex form of printed circuit boards. They are highly functional components that are widely used in the electronics industry due to their ability to connect multiple electrical components in a small space. Multilayer PCBs have board thicknesses of 1.6mm and feature CNC V-cut technology, which ensures precise cutting and accuracy. The HASL (Hot Air

Tags:

multilayer pcb

pcb multilayer

print circuit board
