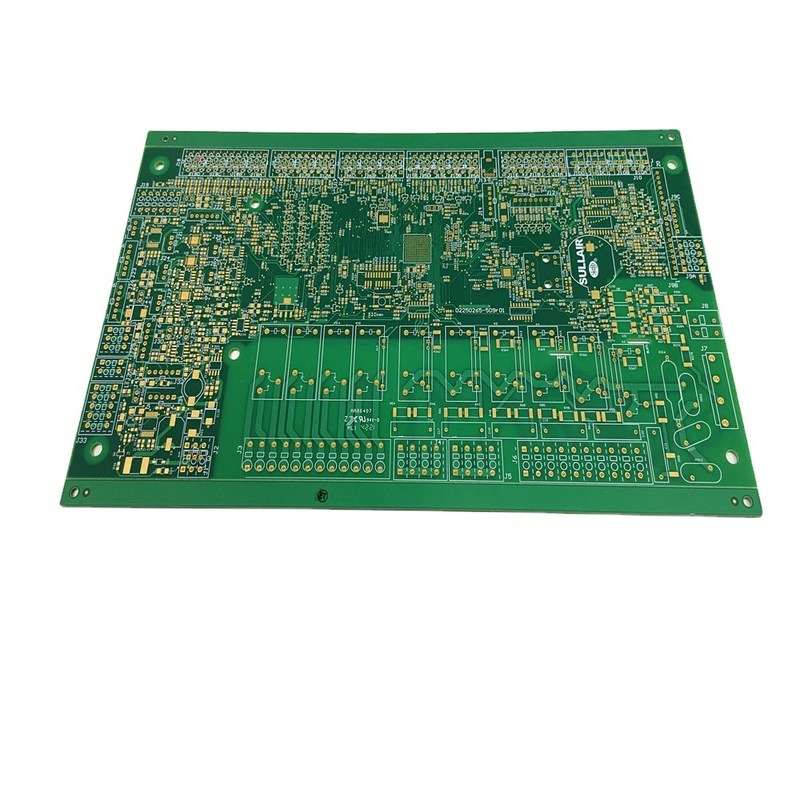

16 layers pcb plug hole pcb board Engineering machine motherboard pcb design manufacturing

16 layers pcb plug hole pcb board Engineering machine motherboard pcb design manufacturing

16 layers pcb plug hole pcb board Engineering machine motherboard pcb design manufacturing

Brand Name:	hengsheng
Model Number:	HS40152
MOQ:	1 pz
Price:	USD 0.1-5/pcs
Delivery Time:	7-10 giorni di lavorazione
Payment Terms:	T/T, Western Union, PayPal

Detail Information

Descrizione del prodotto

Detail Information

Luogo di origine:

Cina

Certificazione:

UL,TS16949,ROHS, ISO9001

Materiale:

FR-4

Spessore del pannello:

2,0 mm

Base Rame:

50um ((1,5 oz)

min. Spazio linea:

0,15 mm

Min. Larghezza della linea:

0,15 mm

minimo Dimensione del foro:

0,30 mm

Superficie:

Enig

Tipo:

Controllo industriale

Imballaggi particolari:

CATON

Capacità di alimentazione:

100000 pezzi al mese

Descrizione del prodotto

Process Capability And Checking Parameters(Hard Board) NO ITEM Technical Capabilities 1 Layers 1-38L 2 Max.Board Size 1200*610mm 48"*24" 3 Finished Board Thickness 0.2mm--10.0mm 0.008"--0.4" 4 Finished Copper Thickness 17um-420um 0.5OZ--12OZ 5 Min.Trace Width/Space 0.075mm/0.065mm 0.003"/0.0026" 6 Min.Hole Size 0.15mm 0.006" 7 Hole Dim. Tolerance(PTH) ±0.05mm ±0.002" 8 Hole Dim.Tolerance(NPTH) ±0.05mm ±0.002" 9 Drill Location Tolerance ±0.05mm ±0.002&
